> SP Series High Speed U drill

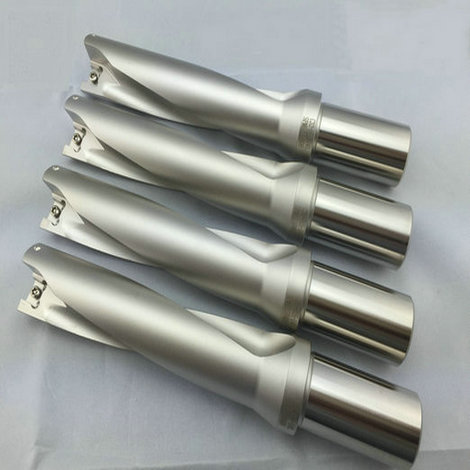

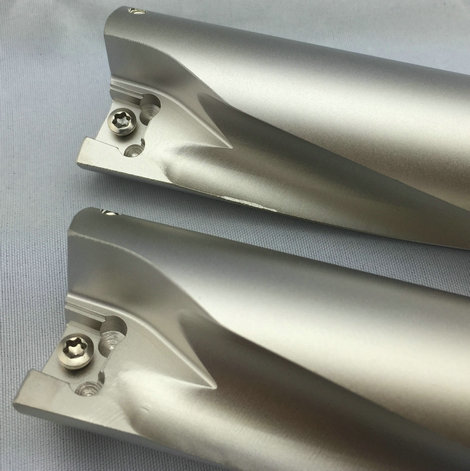

High quality Carbide Indexable U Drill for SP inserts
- Product description: 1.Drilling depth: 2D,3D,4D,5D 2.Suitable insert: SPMG,SPMT 3.Color: Silver Steel Color 4.Coating: Nickel
Product introduction
The advantages of our U DRILLS
1. The design of double helix inner coolant holes.
Make a bigger inner channel. The coolant come out directly to the milling
area, have a better cooling effect.
2. Deeper and wider chip space.
The chippings come out more easier and won’t hurt the surface of the
workpiece, have a smoother chip evacuation.
3. Special heat treatment technology.
Material 42CrMo and after-quenching treatment.Make the hardness reach to HRC52, the body is more strength and rigidity,
have a longer service life.
4. High machining stability performance.
The U drill has a small runout value, there is almost no vibration when it is
working, achieve a faster speed and larger feed. Shorten the processing
time and improve the production efficiency.
1. The design of double helix inner coolant holes.
Make a bigger inner channel. The coolant come out directly to the milling
area, have a better cooling effect.
2. Deeper and wider chip space.
The chippings come out more easier and won’t hurt the surface of the
workpiece, have a smoother chip evacuation.
3. Special heat treatment technology.
Material 42CrMo and after-quenching treatment.Make the hardness reach to HRC52, the body is more strength and rigidity,
have a longer service life.
4. High machining stability performance.
The U drill has a small runout value, there is almost no vibration when it is
working, achieve a faster speed and larger feed. Shorten the processing
time and improve the production efficiency.
